Product Overview
The combined transformer for photovoltaic power generation is a series of products independently developed based on the conventional combined transformer and in combination with domestic demand. It is suitable for 10KV and 35KV terminal power supply systems, with a capacity of up to 2750KVA and below. This product uses transformer oil as the insulation and arc-extinguishing medium, featuring small size, light weight, convenient installation, reliable power supply, strong integrity, and simple maintenance. The enclosure protection level of this product developed by our company reaches IP54.
Usage conditions
■ Altitude: ≤ 3,000 m;
■ Ambient temperature: -45°C to +45°C;
■ Outdoor wind speed: ≤ 35 m/s;
■ Seismic level: Horizontal acceleration not greater than 0.3g, vertical acceleration not greater than 0.15g;
■ Pollution degree: Class III;
■ Enclosure protection level: IP54;
■ Installation location: Outdoors.
If the above normal operating environmental conditions are exceeded, users can negotiate a solution with our company.

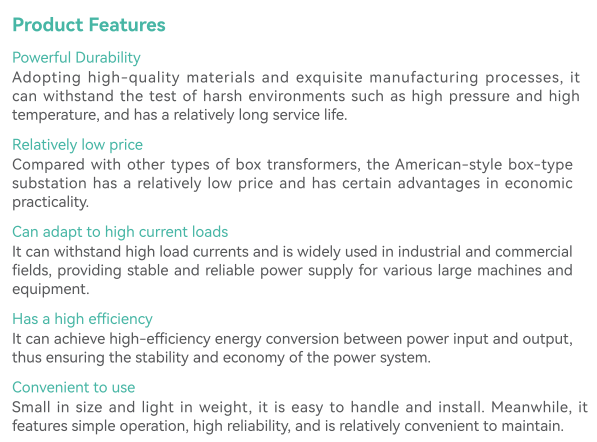

Product Features

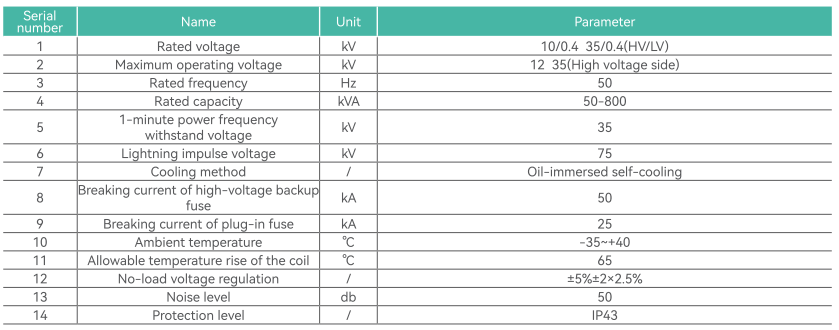

Technical parameters
